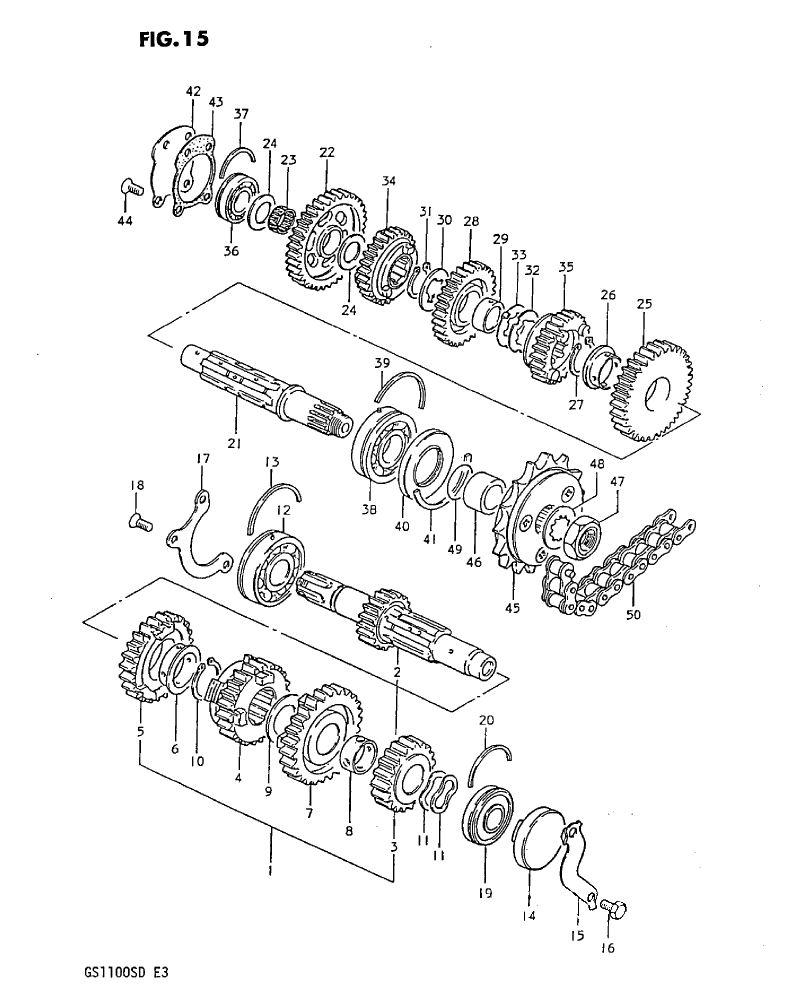

Microfiches GS(X)1100S '83

Qty Required
Notes

1 24120-49201
COUNTERSHAFT ASSY
1

2 24121-49201
.COUNTERSHAFT (NT:14)
1

3 24221-49201
.GEAR, 2ND DRIVE (NT:18)
1

4 24231-49200
.GEAR, 3RD DRIVE (NT:21)
1

5 24241-49200
.GEAR, 4TH DRIVE (NT:24)
1

6 09301-28001
.BUSH
1

7 24251-49201
.GEAR, 5TH DRIVE (NT:26)
1

8 09300-22005
.BUSH
1

9 08211-22321
.WASHER
1

10 08331-11289
.CIRCLIP
1

11 09164-20004
WAVE WASHER
2

12 09262-25051
BEARING, RH
1

13 09390-62006
C RING
1

14 09241-47004
PLUG, COUNTERSHAFT LH
1

15 23117-45000
HOLDER
1

16 01107-06128
BOLT
2

17 24741-45000
HOLDER, BEARING
1

18 02122-06168
SCREW
3

19 09262-20044
BEARING, LH
1

20 09390-47003
C RING
1

21 24131-49201
DRIVESHAFT
1

22 24311-49200
GEAR, 1ST DRIVEN (NT:35)
1

23 09263-20018
BEARING
1

24 08211-20341
WASHER
2

25 24321-49200
GEAR, 2ND DRIVEN (NT:32)
1

26 09301-28001
BUSH
1

27 08331-11289
CIRCLIP
1

28 24331-49201
GEAR, 3RD DRIVEN (NT:29)
1

29 24332-49000
BUSH
1

30 09167-28001
WASHER, RH
1

31 08331-11289
CIRCLIP, RH
1

32 09167-28002
WASHER, LH (T:1.5)
1

33 09169-28001
WASHER, LH (T:1.0)
1

34 24341-49201
GEAR, 4TH DRIVEN (NT:27)
1

35 24351-49201
GEAR, 5TH DRIVEN (NT:25)
1

36 09262-20041
BEARING, RH
1

37 09390-47003
C RING
1

38 09262-25051
BEARING, LH
1

39 09390-62006
C RING
1

40 09283-32012
OIL SEAL
1

41 09390-62008
C RING
1

42 24761-45000
PLATE
1

43 24762-45000
GASKET
1

44 02122-06168
SCREW
4

45 27510-49010
SPROCKET, ENGINE (NT:15)
1

46 09180-25052
SPACER
1

47 09159-20001
NUT
1

48 09167-25014
LOCK WASHER
1

49 09280-25001
O RING
1

50 27600-49220
CHAIN, DRIVE (96LE)
2
