<< Klik op gewenste groep om afbeelding van onderdelen zichtbaar te maken.
LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

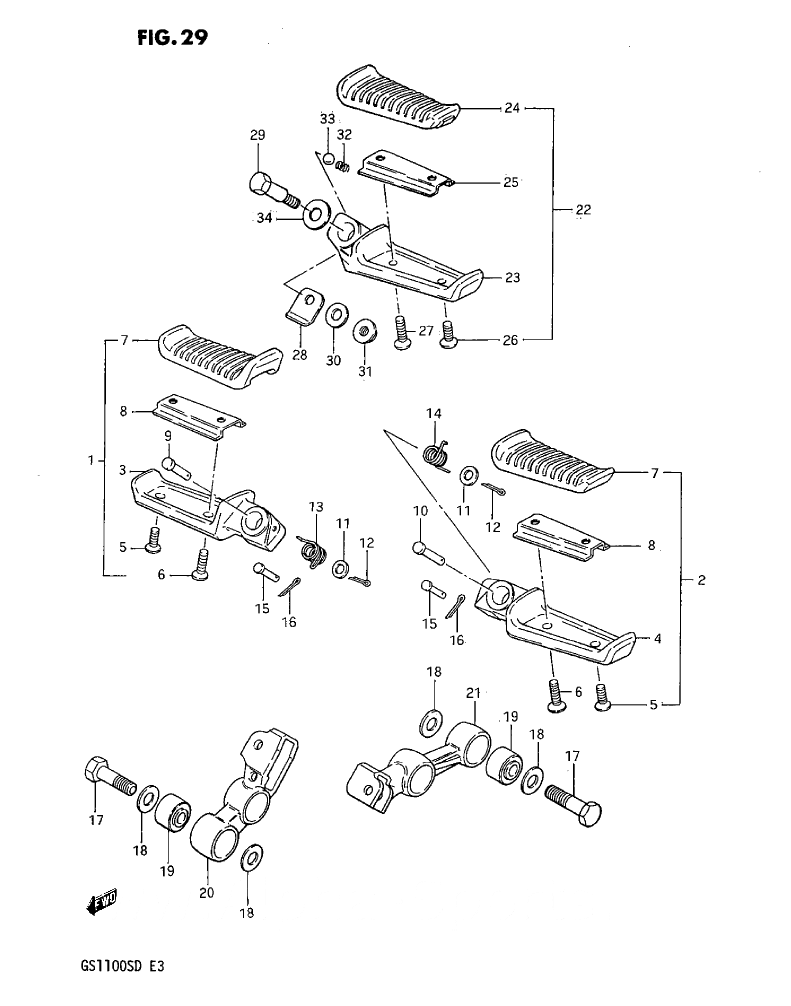

'83 GS(X)1100SD Katana - footrest..

Qty Required
Notes

1 43501-33300
FOOTREST ASSY, FRONT RH
1

2 43502-33300
FOOTREST ASSY, FRONT LH
1

3 43510-33300
.BAR, FRONT FOOTREST RH
1

4 43520-33300
.BAR, FRONT FOOTREST LH
1

5 02112-05128
.SCREW
2

6 02112-05168
.SCREW
2

7 43551-33300
.RUBBER, FRONT FOOTREST
2

8 43580-33300
.PLATE, FRONT FOOTREST RUBBER
2

9 09200-08002
PIN, RH
1

10 09200-08040
PIN, LH
1

11 08322-11088
WASHER
2

12 04111-20208
COTTER PIN
2

13 09448-10002
SPRING, RH
1

14 09448-14028
SPRING, LH
1

15 09200-06040
PIN
2

16 04111-20208
COTTER PIN
2

17 09104-10012
BOLT
4

18 09160-10057
WASHER
8

19 09319-10008
BUSH
4

20 43531-49310
HOLDER, FOOTREST RH
1

21 43541-49310
HOLDER, FOOTREST LH
1

22 43600-45501
FOOTREST ASSY, PILLION RH
1

22 43700-45501
FOOTREST ASSY, PILLION LH
1

23 43610-45501
.BAR, PILLION FOOTREST RH
1

23 43710-45501
.BAR, PILLION FOOTREST LH
1

24 43612-45500
.RUBBER, PILLION FOOTREST
2

25 43632-45500
.PLATE, RUBBER STOP
2

26 02132-05127
.SCREW
2

27 02132-05168
.SCREW
2

28 43635-45510
PLATE, SPRING STOP
2

29 09111-06038
BOLT
2

30 08322-11088
WASHER
2

31 08319-31068
NUT
2

32 09440-05003
SPRING
2

33 06111-07004
STEEL BALL
2

34 09181-08004
SHIM
2
