<< Klik op gewenste groep om afbeelding van onderdelen zichtbaar te maken.
LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

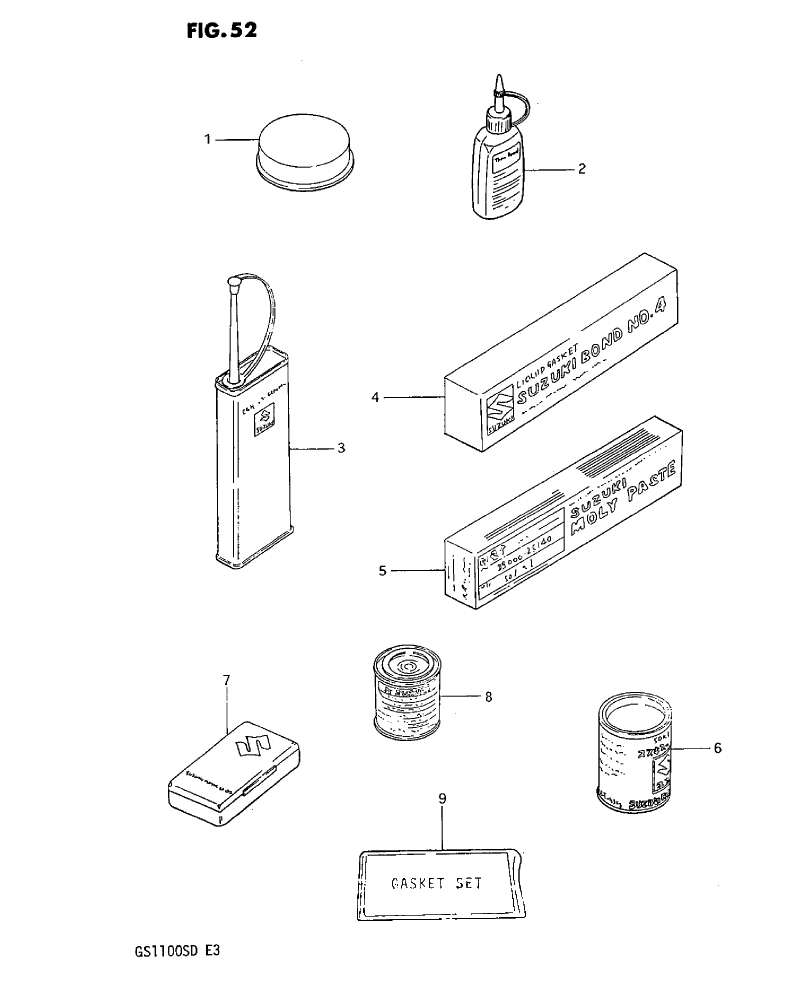

'83 GS(X)1100SD Katana - optional..

Qty Required
Notes


1 99000-25110
GREASE, BRAKE PAD
1 20G

2 99104-32020
THREAD LOCK, SUPER (1333B)
1 50G

2 99104-32030
THREAD LCOK, SUPER (1363A)
1 50G

2 99000-32050
THREAD LOCK, SUPER (1342)
1 50G

2 99000-32100
THREAD LOCK, SUPER (1305)
1 50G

3 99000-32040
THREAD LOCK CEMENT
1 200G

4 99000-31030
SUZUKI BOND NO.4
1 100G

5 99000-25140
SUZUKI MOLY PASTE
1 50G

6 99000-25030
SUZUKI SUPER GREASE
1 150G

7 09826-00001
TUBE REPAIRING TOOL
1

8 99000-10209-13L
PAINT (BRIGHT SILVER METALLIC
1 90G

8 99000-10209-05L
PAINT (CANDY IMPERIAL MAROON)
1 90G

8 99000-10209-16L
PAINT (MARBLE EXCELLENT BLUE
1 90G

8 99000-10109-019
PAINT (BLACK)
1 90G

8 99000-10109-291
PAINT (BLACK SEMI-GLOSS)
1 90G

9 11401-49880
GASKET SET
2
