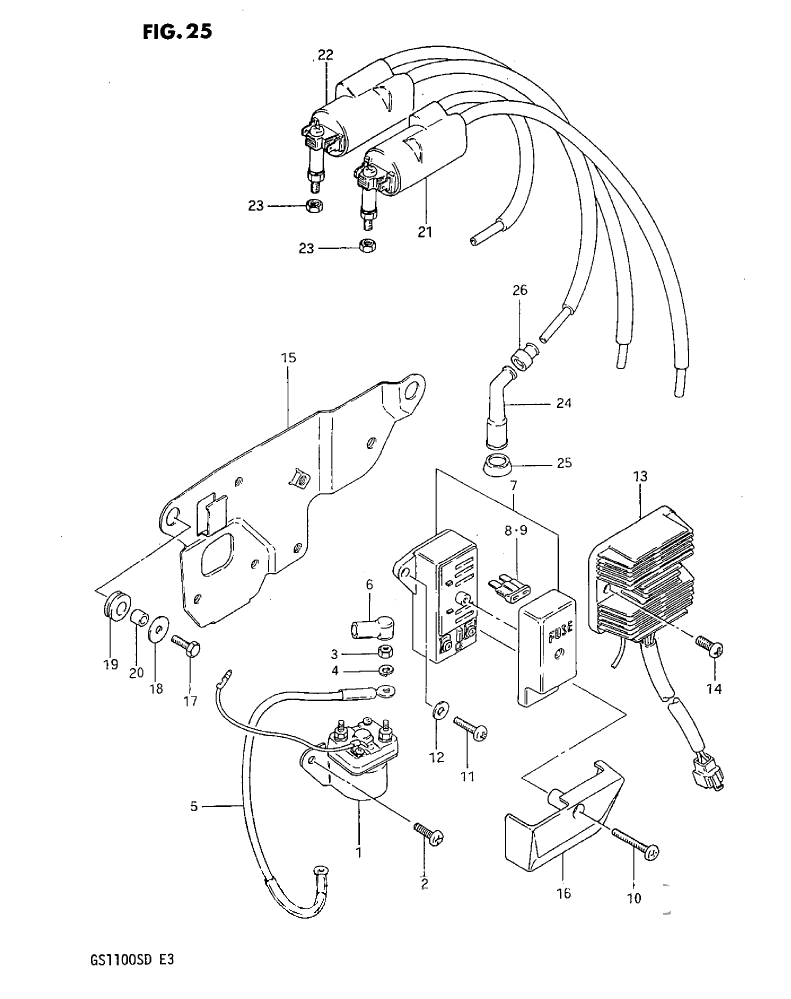

Microfiches GS(X)1100S '83

Qty Required
Notes

1 31800-49320
RELAY, STARTING MOTOR
1

2 02112-06108
SCREW
2

3 08310-22068
NUT
2

4 08321-21068
LOCK WASHER
2

5 33850-49002
LEAD WIRE, STARTING MOTOR
1

6 31861-35100
CAP, TERMINAL
3

7 36740-49300
FUSE CASE ASSY
1

8 09481-10101
.FUSE (10A)
4

9 09481-15101
.FUSE (15A)
1

10 02112-06358
SCREW
1

11 02112-06168
SCREW
1

12 08322-21068
WASHER
1

13 32800-49320
RECTIFIER, REGULATOR
1

14 02112-06128
SCREW
1

15 47410-49310
PLATE, PARTS HOLDER
1

16 47419-49301
COVER, PARTS HOLDER
1

17 01107-06168
BOLT
2

18 09160-06063
WASHER
2

19 09320-08013
CUSHION
2

20 09180-07005
SPACER
2

21 33410-49210
COIL, IGNITION NO.1
1

22 33420-49210
COIL, IGNITION NO.2
1

23 08310-11068
NUT
4

24 33510-45010
CAP, SPARK PLUG
4

25 33541-32410
SEAL, PLUG
4

26 33542-98000
SEAL, HIGHTENSION CORD
4
