LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

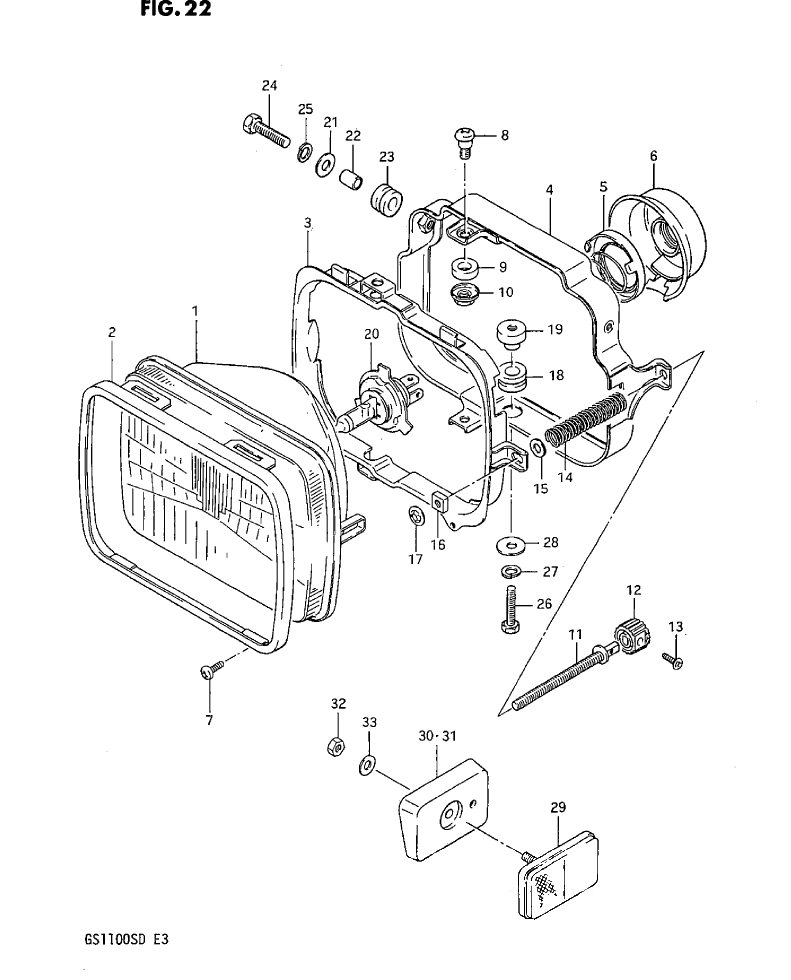

'83 GS(X)1100SD Katana - headlamp..

Qty Required
Notes


0 35100-49330-999
HEADLAMP ASSY
1

1 35121-49230
.UNIT
1

2 35127-49320
.RETAINER
1

3 35130-49320
.RING, MOUNTING
1

4 35381-49320
.HOUSING
1

5 35136-49200
.HOLDER, BULB
1

6 35173-49200
.COVER
1

7 02112-03088
.SCREW
2

8 35136-25611
.SCREW
2

9 35133-45600
.SPACER
2

10 35135-25611
.NUT
2

11 35151-49320
.ADJUSTING SCREW
1

12 35161-49320
.KNOB
1

13 02112-03108
.SCREW
1

14 35154-49320
.SPRING
1

15 35157-49320
.WASHER
1

16 35152-49320
.NUT
1

17 35152-49330
.NUT
1

18 35382-49321
.CUSHION
1

19 35383-49321
.NUT
1

20 09471-12060
BULB (12V,60/55W,H4)
1

21 09160-06007
WASHER
2

22 09180-06044
SPACER
2

23 09320-08001
CUSHION
2

24 01107-06258
BOLT
2

25 08321-21068
LOCK WASHER
2

26 09128-06030
BOLT
1

27 08321-21068
LOCK WASHER
1

28 08322-11068
WASHER
1

29 35950-49330
REFLEX REFLECTOR, FRONT
2

30 35954-49330
SPACER, RH
1

31 35955-49330
SPACER, LH
1

32 08310-11058
NUT
2

33 08322-21058
WASHER
2
