LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

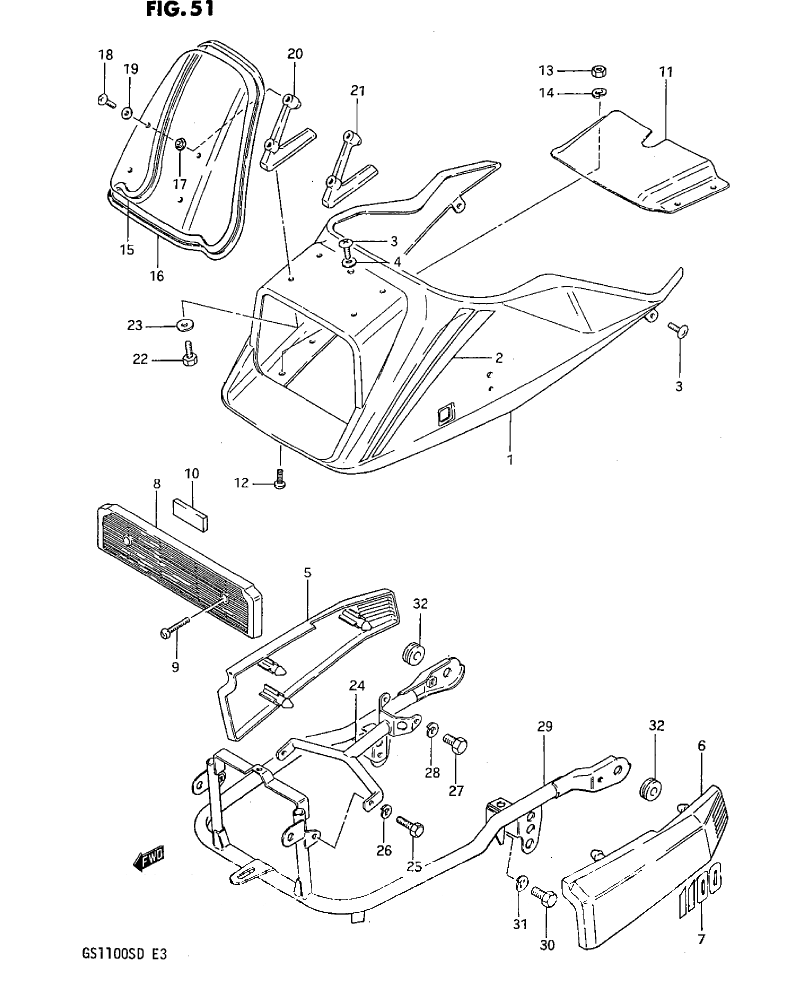

'83 GS(X)1100SD Katana - cowling..

Qty Required
Notes

1 94400-49870-87A
BODY, COWLING
1

2 68190-49300-75G
.TAPE SET
1

3 02142-06125
SCREW
5

4 09161-07003
SPACER
1

5 94430-49810-13L
COVER, RH
1

6 94440-49810-13L
COVER, LH
1

7 68131-49320
.EMBLEM
2

8 94445-49300
COVER, LOWER
1

9 02142-06308
SCREW
2

10 94446-49300
CUSHION
1

11 94412-49300
COVER, LOWER FRONT
1

12 02142-06125
SCREW
4

13 08310-11068
NUT
4

14 08321-21068
LOCK WASHER
4

15 94611-49320
WINDOW
1

16 94631-49300
MOLDING
1

17 09320-05008
CUSHION
4

18 02142-05105
SCREW
4

19 09161-05010
WASHER
4

20 94621-45500
BRACE, WINDOW RH
1

21 94625-45500
BRACE, WINDOW LH
1

22 01107-06128
BOLT
4

23 09160-06019
WASHER
4

24 94510-49302
BRACE, FRONT
1

25 01107-06168
BOLT, FRONT
2

26 08321-21068
LOCK WASHER
2

27 01107-08168
BOLT, REAR
2

28 08321-21088
LOCK WASHER
2

29 94530-49301
BRACE, REAR
1

30 01107-08128
BOLT
2

31 08321-21088
LOCK WASHER
2

32 09320-08018
CUSHION
6
