<< Klik op gewenste groep om afbeelding van onderdelen zichtbaar te maken.
LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

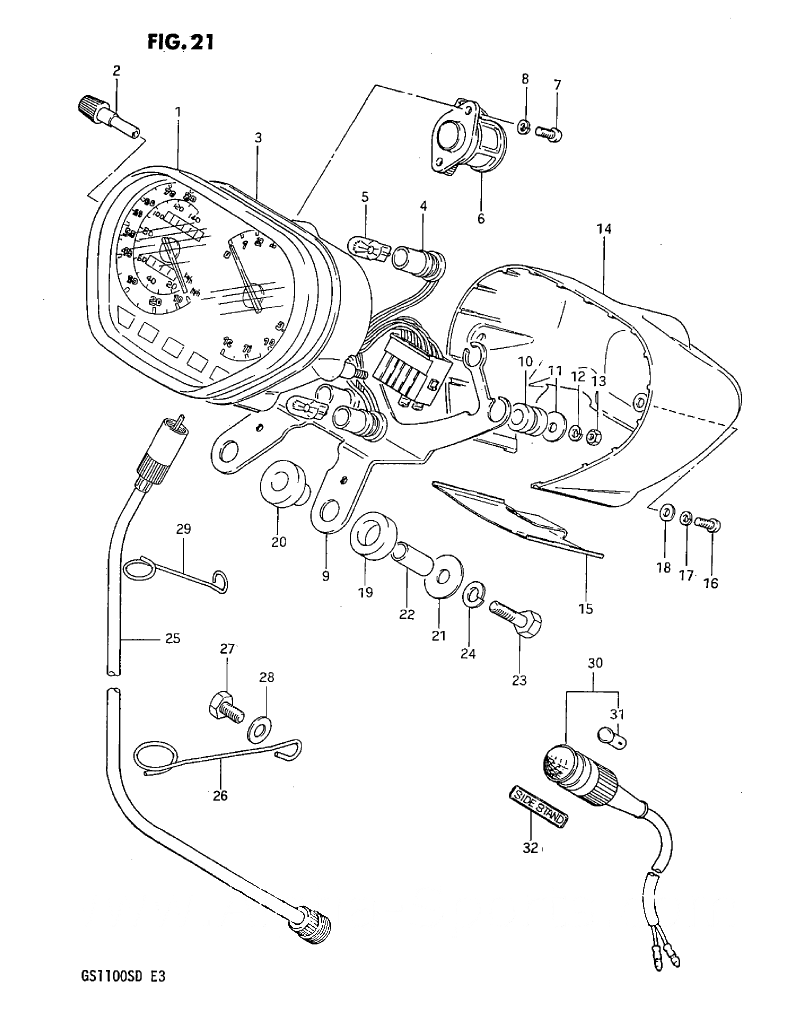

'83 GS(X)1100SD Katana - speedometer - tachometer..

Qty Required
Notes

1 34101-49311
SPEEDO & TACHOMETER
1 MILE/KILO SCALE

2 34124-39111
KNOB
1

3 34196-49300
CUSHION
1

4 34173-49300
SOCKET
1

5 09471-12082
BULB (12V,3.4W)
8

6 34131-49300
GEAR BOX ASSY
1

7 02112-04108
SCREW
2

8 08321-21048
LOCK WASHER
2

9 34950-49300
BRACKET
1

10 34955-28010
CUSHION
3

11 34181-49300
WASHER
2

12 08321-21048
LOCK WASHER
2

13 08310-11048
NUT
2

14 34193-49300
LOWER COVER
1

15 34197-49300
PLATE
1

16 02112-04108
SCREW
3

17 08321-21048
LOCK WASHER
3

18 08322-21048
WASHER
3

19 34955-11300
CUSHION, LOWER
2

20 34956-11300
CUSHION, UPPER
2

21 09160-06004
WASHER
2

22 09180-06040
SPACER
2

23 01107-06308
BOLT
2

24 08321-21068
LOCK WASHER
2

25 34910-49310
CABLE, SPEEDOMETER
1

26 34938-45100
GUIDE, METER CABLE
1

27 01107-06168
BOLT
1

28 08322-21068
WASHER
1

29 34939-49300
GUIDE, METER CABLE
1

30 34991-45000
LAMP ASSY, PROP STAND WARNING
1

31 09471-12001
.BULB (12V,3.4W)
1

32 36399-49300
PLATE, PROP STAND LAMP
2
