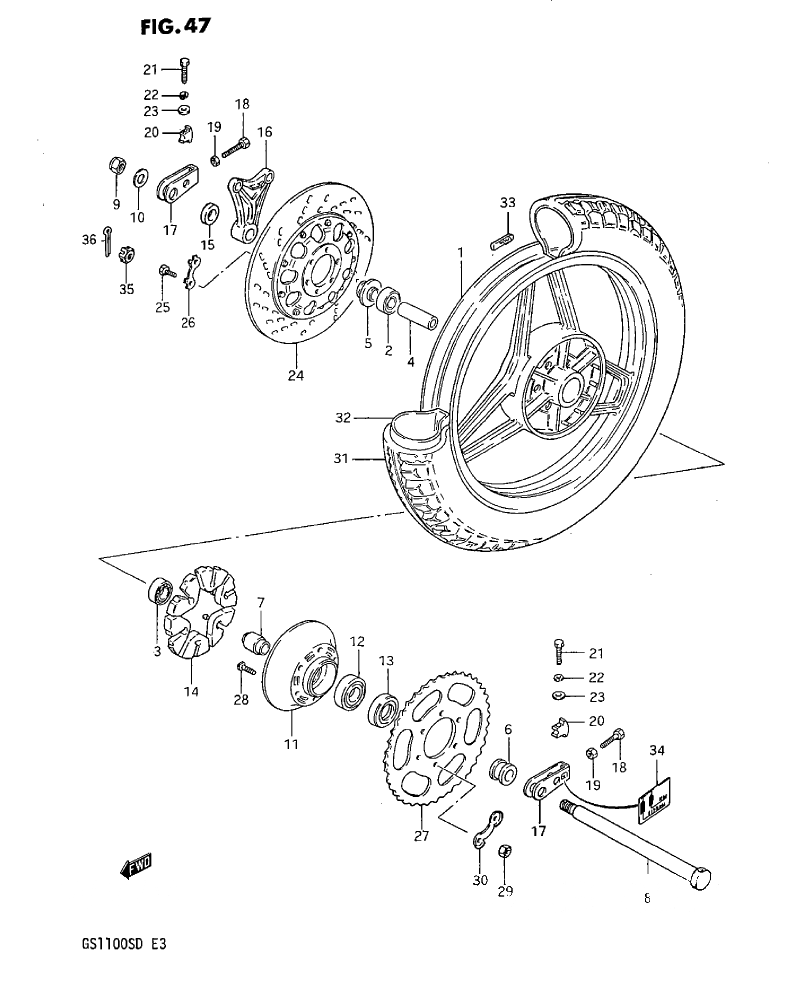

Microfiches GS(X)1100S '83

Qty Required
Notes

1 64111-49500-291
WHEEL, REAR (MT2.50X17)
1

2 08133-62047
BEARING, RH
1

3 08153-62047
BEARING, LH
1

4 09180-20062
SPACER
1

5 64740-45001
SPACER, AXLE RH
1

6 09180-20054
SPACER, AXLE LH (20X33X28.3)
1

7 64733-31000
HOLDER, BEARING
1

8 64711-49000
AXLE, REAR
1

9 09159-18006
NUT
1 MODEL Z

10 09160-19008
WASHER (19X34X4)
1

11 64611-31001
DRUM, SPROCKET MOUNTING
1

12 08113-63050
BEARING
1

13 09285-33001
OIL SEAL
1

14 64651-31000
CUSHION, REAR HUB
6

15 09180-20060
SPACER
1

16 69721-47011
BRACKET, REAR CALIPERS
1

17 61410-31001
ADJUSTER, CHAIN
2

18 09104-08006
BOLT
2

19 08310-12088
NUT
2

20 61433-31000
SUPPORTER, CHAIN ADJUSTER
2

21 01107-08608
BOLT
2

22 08321-21088
LOCK WASHER
2

23 08322-11088
WASHER
2

24 59210-18450
DISK, REAR BRAKE
1

25 09100-08094
BOLT
6

26 09169-08016
WASHER
3

27 64511-49001
SPROCKET, REAR (NT:42)
1

28 09119-10002
BOLT
6

29 09140-10026
NUT
6

30 09169-10007
WASHER
3

31 65100-49230
TIRE (4.50V17)
1 BS

32 65200-49030
TUBE, INNER
1

33 55411-49300
BALANCER, NO.1 (20G)
As Required

33 55412-49300
BALANCER, NO.2 (30G)
As Required

34 68377-49000
LABEL, CHAIN WEAR INDICATOR
1

35 08314-31188
NUT
1 MODEL D

36 04111-40308
COTTER PIN
1 MODEL D
