Microfiches GS(X)1100S '83

Qty Required
Notes

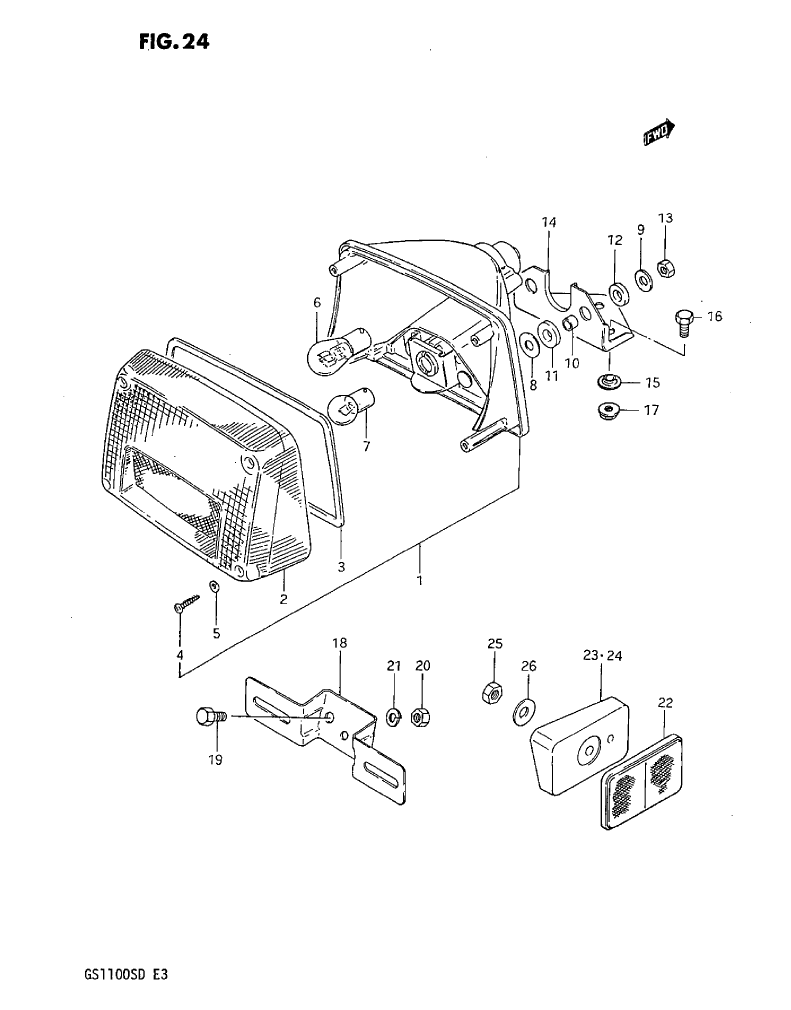

1 35710-49330
LAMP ASSY, TAIL
1

2 35712-49031
.LENS
1

3 35713-49030
.GASKET
1

4 35627-49030
.SCREW
4

5 35627-43010
.GASKET
4

6 09471-12035
.BULB (12V,32/3CP)
1

7 09471-12037
.BULB (12V,4CP)
1

8 09160-06007
WASHER
2

9 09160-06012
WASHER
2

10 09180-06038
SPACER
2

11 09320-09003
CUSHION
2

12 09320-09004
CUSHION
2

13 08316-26068
NUT
2

14 35726-49330
BRACKET, TAIL LAMP
1

15 09169-06028
WASHER
3

16 01107-06168
BOLT
3

17 08316-26068
NUT
3

18 35927-49330
BRACKET, LICENSE PLATE
1

19 01517-06168
BOLT
2

20 08310-11068
NUT
2

21 08321-21068
LOCK WASHER
2

22 35970-49330
REFLEX REFLECTOR, REAR
2

23 35977-49330
SPACER, RH
1

24 35978-49330
SPACER, LH
1

25 08310-11058
NUT
2

26 08322-21058
WASHER
2
