<< Klik op gewenste groep om afbeelding van onderdelen zichtbaar te maken.
LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

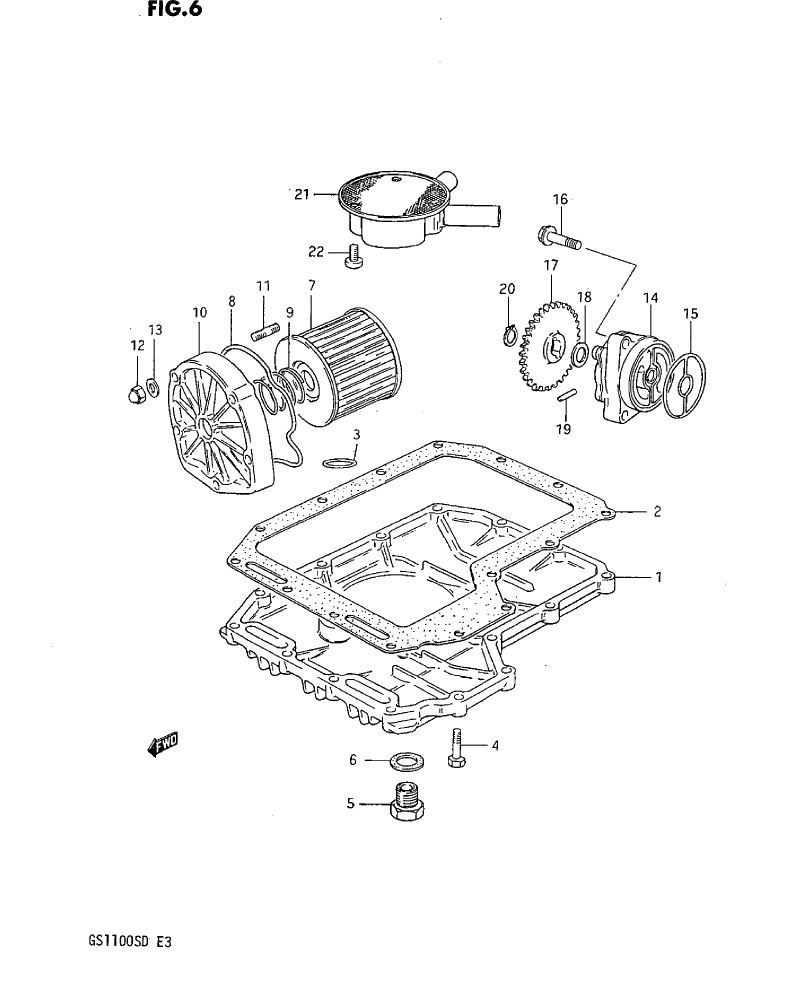

'83 GS(X)1100SD Katana - oil pump - oil filter..

Qty Required
Notes

1 11511-49220
PAN, OIL
1

2 11489-49200
GASKET
1

3 09280-13001
O RING
1

4 01517-06255
BOLT (6X25)
15

5 09247-14001
PLUG, OIL DRAIN
1

6 09168-14004
GASKET
1

7 16510-45040
FILTER, ENGINE OIL
1

8 16518-49200
O RING
1

9 09440-32004
SPRING
1

10 16531-49220
CAP
1

11 01421-06258
STUD BOLT
5

12 08313-11065
NUT
5

13 08322-21065
WASHER
5

14 16400-49220
PUMP, ENGINE OIL
1

15 16491-49200
O RING
1

16 09103-06045
BOLT (6X32)
3

17 16331-49000
GEAR, DRIVEN (NT:33)
1

18 08221-10185
WASHER
1

19 09261-04009
PIN
1

20 08331-31109
CIRCLIP
1

21 16520-49200
STRAINER, ENGINE OIL
1

22 02112-06128
SCREW
3
