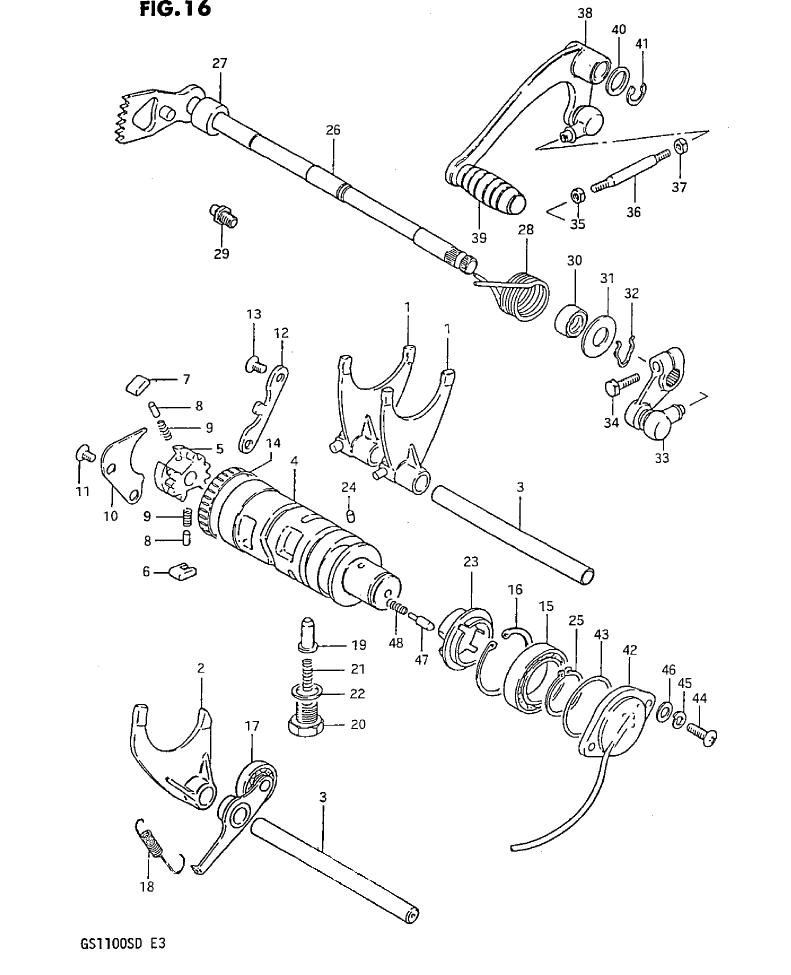

Microfiches GS(X)1100S '83

Qty Required
Notes

1 25211-49200
FORK, SHIFTING
2

2 25231-49201
FORK, SHIFTING
1

3 25411-49200
SHAFT, GEAR SHIFTING FORK
2

4 25310-49200
CAM, GEAR SHIFTING
1

5 25322-11000
GEAR, CAM DRIVEN
1

6 25323-11000
PAWL, NO.1
1

7 25324-11000
PAWL, NO.2
1

8 09261-05003
PIN
2

9 09440-04003
SPRING
2

10 25331-49200
LIFTER, PAWL
1

11 02122-06128
SCREW
2

12 25341-18000
GUIDE, CAM
1

13 02122-06128
SCREW
2

14 09263-43001
BEARING, RH
1

15 08110-69050
BEARING, LH
1

16 08331-41428
CIRCLIP
1

17 25350-49201
STOPPER, CAM
1

18 09443-08019
SPRING
1

19 25351-30010
STOPPER, CAM
1

20 25354-30000
HOLDER, STOPPER
1

21 09440-06020
SPRING
1

22 09168-14004
GASKET
1

23 25381-49200
PLATE, STOPPER
1

24 06211-04063
PIN
1

25 08331-31258
CIRCLIP
1

26 25510-45400
SHAFT, GEAR SHIFTING
1

27 09180-12068
SPACER
1

28 09444-26017
SPRING
1

29 25671-01000
STOPPER, ARM
1

30 09285-12002
OIL SEAL
1

31 09160-12020
WASHER
1

32 09384-12001
CIRCLIP
1

33 25520-49310
ARM
1

34 01107-06258
BOLT
1

35 08310-11068
NUT, R
1

36 25525-49300
ROD
1

37 09140-06011
NUT, L
1

38 25600-49310
LEVER ASSY, SHIFTING
1

39 25652-49300
.COVER
1

40 09160-12011
WASHER
1

41 08331-31128
CIRCLIP
1

42 37720-09300
BODY, SHIFTING SWITCH
1

43 09280-36001
O RING
1

44 02112-05128
SCREW
2

45 08321-21058
LOCK WASHER
2

46 08322-21058
WASHER
2

47 09209-05011
CONTACT
1

48 09440-04010
SPRING
2
