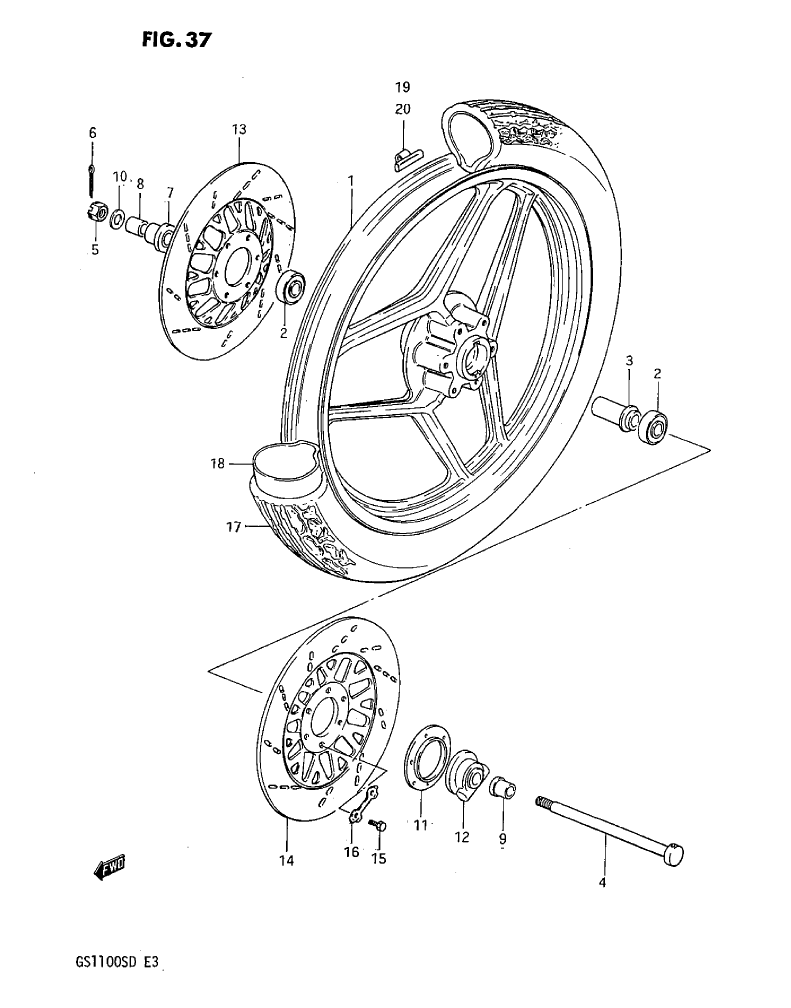

Microfiches GS(X)1100S '83

Qty Required
Notes

1 54111-49500-291
WHEEL, FRONT (19X1.85)
1 (BLACK)

2 08123-63027
BEARING
2

3 54730-18400
SPACER
1

4 54711-49000
AXLE, FRONT
1

5 08314-31128
NUT
1

6 04111-30308
COTTER PIN
1

7 54740-18402
SPACER, BEARING RH
1

8 54741-49300
SPACER, AXLE RH
1

9 54741-49000
SPACER, AXLE LH
1

10 08322-21128
WASHER
1

11 54871-45010
DUST SEAL
1

12 54600-18401
BOX, SPEEDOMETER GEAR
1

13 59211-45250
DISK, FRONT BRAKE RH
1

14 59221-45250
DISK, FRONT BRAKE LH
1

15 09100-08140
BOLT
12

16 09169-08016
WASHER
6

17 55100-49530
TIRE (3.50V19)
1 BS

18 55200-15030
TUBE, INNER
1

19 55411-49300
BALANCER (20G)
As Required

20 55412-49300
BALANCER (30G)
As Required
