Microfiches GS(X)1100S '83

Onderdeelnummers en prijzen



battery
carburetor-faulty
carburetor
starting motor
turn signal lamp
wiring harness
air cleaner
cam chain
cam shaft - valve
chain case - rear shock absorber
clutch
cowling
crankcase cover
crankcase
crankshaft
cylinder head cover
cylinder head
cylinder
electrical
footrest
frame cover
frame
front brake hose
front calipers
front damper
front fender
front master cylinder
front wheel
fuel cock
fuel tank
gear shifting
generator
handlebar
headlamp
left handle switch
master cylinder
muffler
oil pump - oil filter
optional
rear brake hose
rear calipers
rear combination lamp
rear fender
rear swinging arm
rear wheel
right handle switch
seat
signal generator
speedometer - tachometer
stand
starter clutch
steering stem
transmission
<< Klik op gewenste groep om afbeelding van onderdelen zichtbaar te maken.
LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

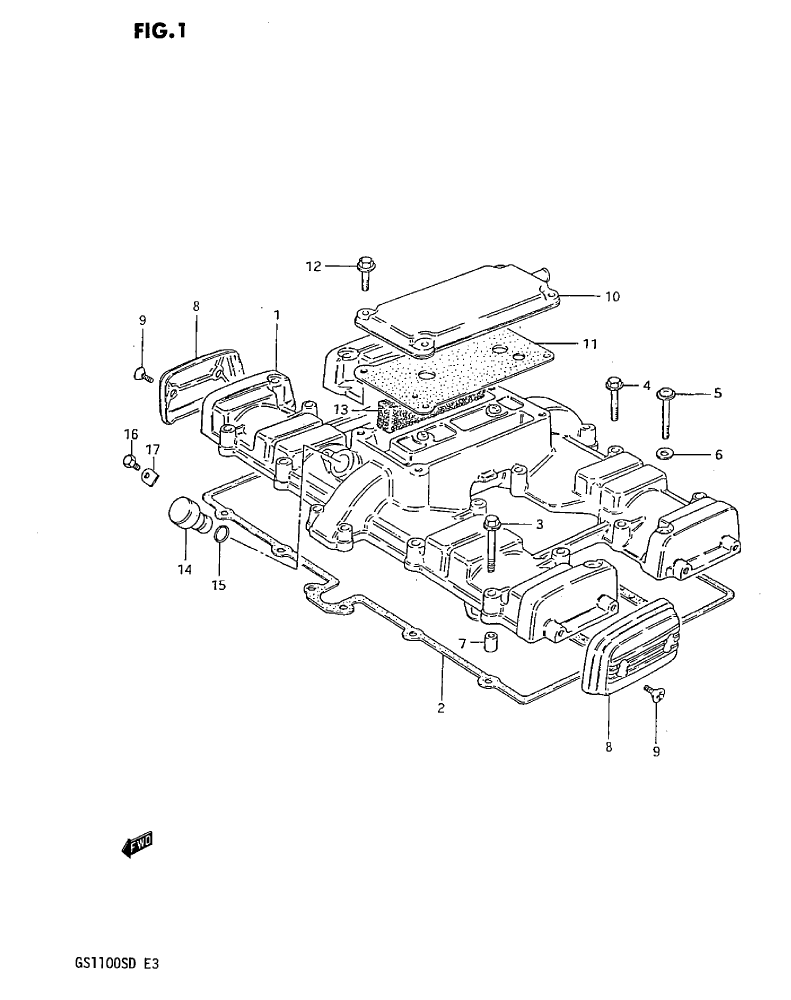

'83 GS(X)1100SD Katana - cylinder head cover..

Qty Required
Notes


1 11171-45440
COVER, CYLINDER HEAD
1

2 11173-49221
GASKET
1

3 01517-06405
BOLT
6

4 01517-06355
BOLT
14

5 02152-06405
SCREW
4

6 09168-06009
WASHER
4

7 09206-08001
PIN
2

8 11174-49221
CAP, CYLINDER HEAD COVER
4

9 09127-05015
SCREW
8

10 11176-45411
COVER, BREATHER
1

11 11177-49210
GASKET
1

12 11186-49200
SEPARATOR, OIL
1

13 01517-06205
BOLT
4

14 26442-45000
PLUG, TACHO. HOLE
1

15 26451-45000
SEAL BAND
1

16 09128-05101
SCREW
1

17 26449-33000
PLATE
2
