<< Klik op gewenste groep om afbeelding van onderdelen zichtbaar te maken.
LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

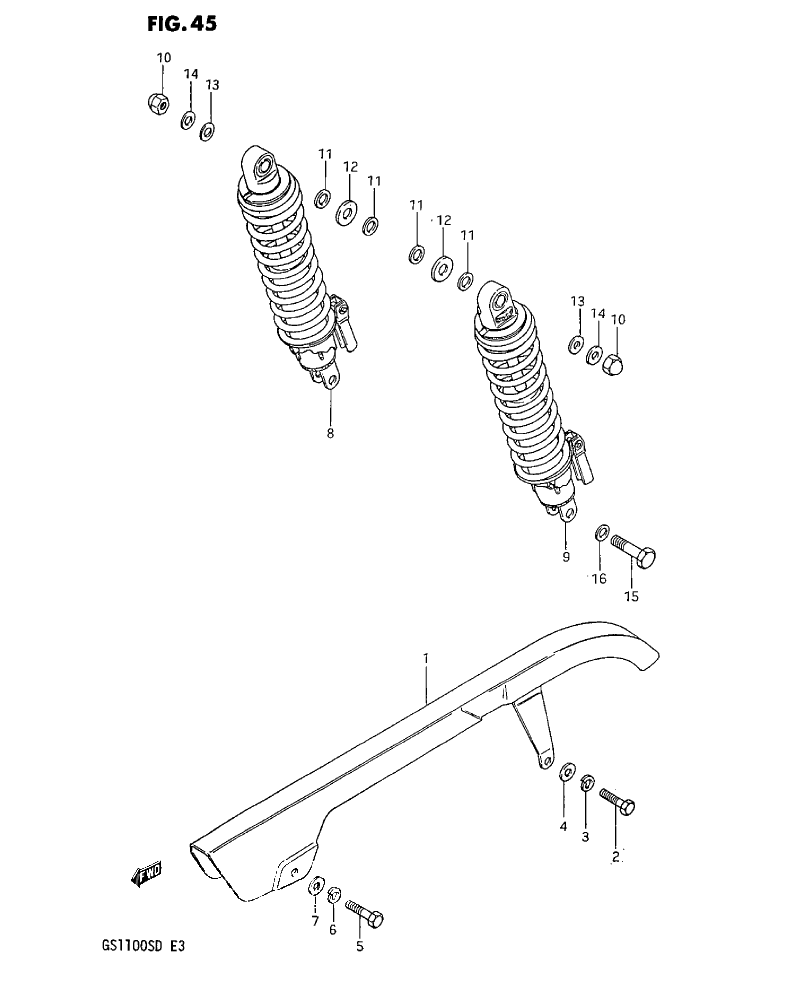

'83 GS(X)1100SD Katana - chain case - rear shock absorber..

Qty Required
Notes


1 61310-49300-291
CHAIN CASE
1

2 01107-06258
BOLT, REAR
1

3 08321-21068
LOCK WASHER
1

4 08322-21068
WASHER
1

5 01107-06128
BOLT, FRONT
1

6 08321-21068
LOCK WASHER
1

7 09160-06007
WASHER
1

8 62103-49330
SHOCK ABSORBER, REAR RH
1

9 62104-49330
SHOCK ABSORBER, REAR LH
1

10 08313-11108
NUT
2

11 08322-11128
WASHER, INNER (12.5X24X2.3)
4

12 09160-12012
WASHER (12.5X24X3.2)
2

13 09160-10001
WASHER
2

14 09160-10033
WASHER, OUTER (10.5X24X3.2)
2

15 09104-10002
BOLT
2

16 08322-11108
WASHER
2
