<< Klik op gewenste groep om afbeelding van onderdelen zichtbaar te maken.
LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

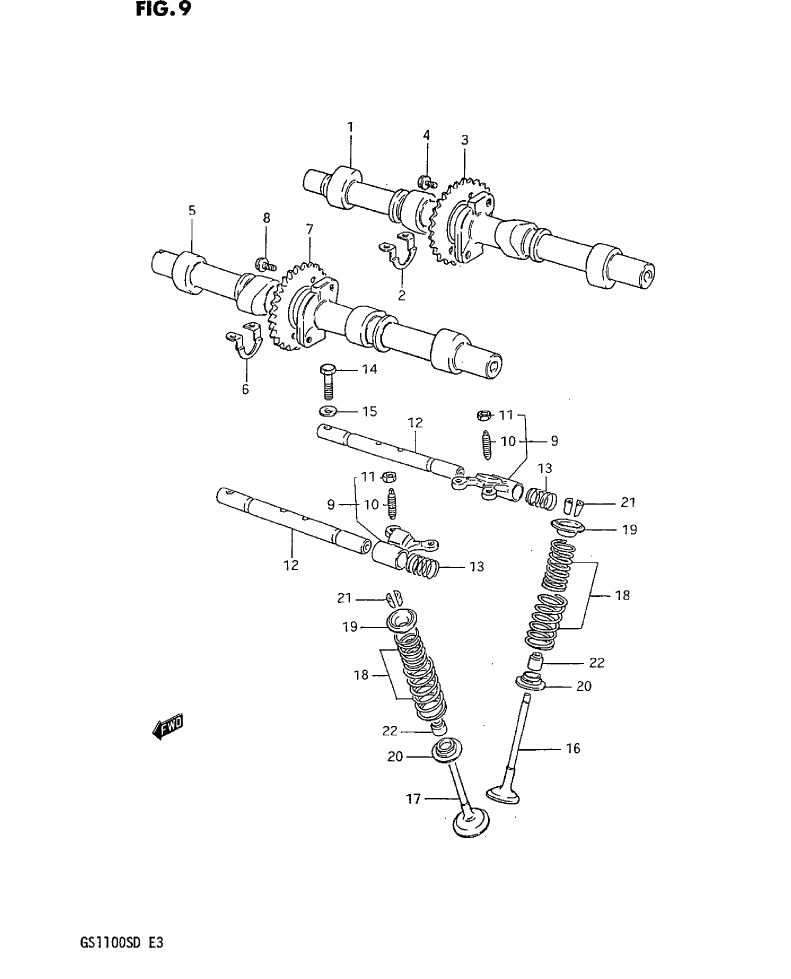

'83 GS(X)1100SD Katana - cam shaft - valve..

Qty Required
Notes


1 12700-45810
CAM SHAFT, INTAKE
1

2 12712-45070
.SHIM (T:0.4)
1

2 12712-45071
.SHIM (T:0.5)
1

2 12712-45072
.SHIM (T:0.6)
1

3 12741-47002
SPROCKET, INTAKE (NT:30)
1

4 09103-07001
BOLT
2

5 12700-49820
CAM SHAFT, EXHAUST
1

6 12712-45070
.SHIM (T:0.4)
1

6 12712-45071
.SHIM (T:0.5)
1

6 12712-45072
.SHIM (T:0.6)
1

7 12751-47002
SPROCKET, EXHAUST (NT:30)
1

8 09103-07001
BOLT
2

9 12840-49200
ARM, VALVE ROCKER
8

10 12842-49210
.SCREW
16

11 12843-49210
.NUT
16

12 12860-49200
SHAFT, VALVE ROCKER ARM
4

13 09440-13014
SPRING
8

14 01107-06308
BOLT
4

15 08322-21068
WASHER
4

16 12911-49220
VALVE, INTAKE
8

17 12912-49220
VALVE, EXHAUST
8

18 12920-49210
SPRING SET, VALVE
16

19 12931-49200
RETAINER, SPRING
16

20 12933-49200
SEAT, SPRING
16

21 12932-49200
COTTER, VALVE
32

22 09289-05003
OIL SEAL
16
