LET OP: dit zijn fiches van de Katana voor de amerikaanse markt dus sommige onderdelen kunnen verschillen van modellen zoals gevoerd in Europa of Engeland.
Onderaan kun je klikken op de onderdeelnummers om de prijs op te zoeken (alleen in US-dollars!)

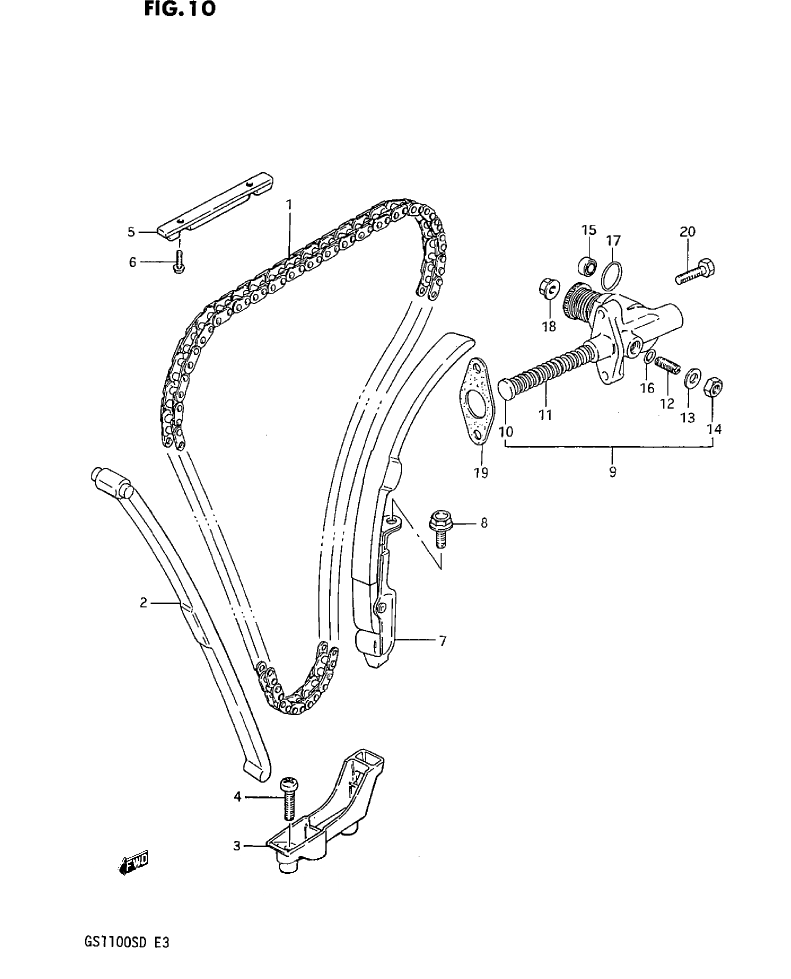

'83 GS(X)1100SD Katana - cam chain..

Qty Required
Notes

1 12760-49011
CHAIN, DRIVE (120L)
1

2 12771-45052
GUIDE, CAM CHAIN
1

3 12776-49000
HOLDER, GUIDE
1

4 02112-06208
SCREW
2

5 12782-49200
GUIDE, CAM CHAIN (H:10)
1

6 02112-05128
SCREW
2

7 12810-49250
TENSIONER, CAM CHAIN
1

8 01517-08168
BOLT
1

9 12830-47010
ADJUSTER ASSY, TENSIONER
1

10 12833-47001
.PUSH ROD
1

11 09440-12017
.SPRING
1

12 12838-45010
.SCREW
1

13 08322-11085
.WASHER
1

14 08310-11085
.NUT
1

15 09284-10003
.OIL SEAL
1

16 09280-06003
.O RING
1

17 09280-21001
.O RING
1

18 08316-16065
.NUT
1

19 12837-47000
GASKET, TENSIONER
1

20 09128-06022
BOLT
2
